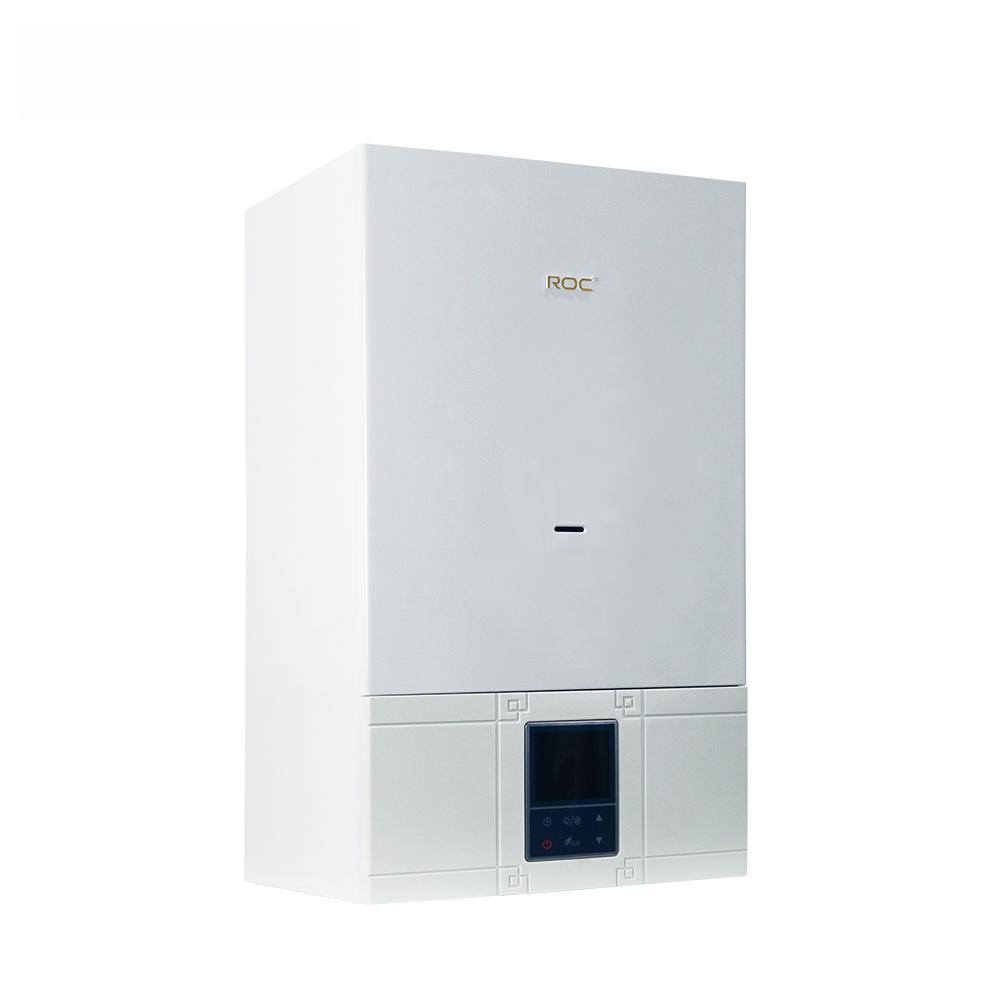

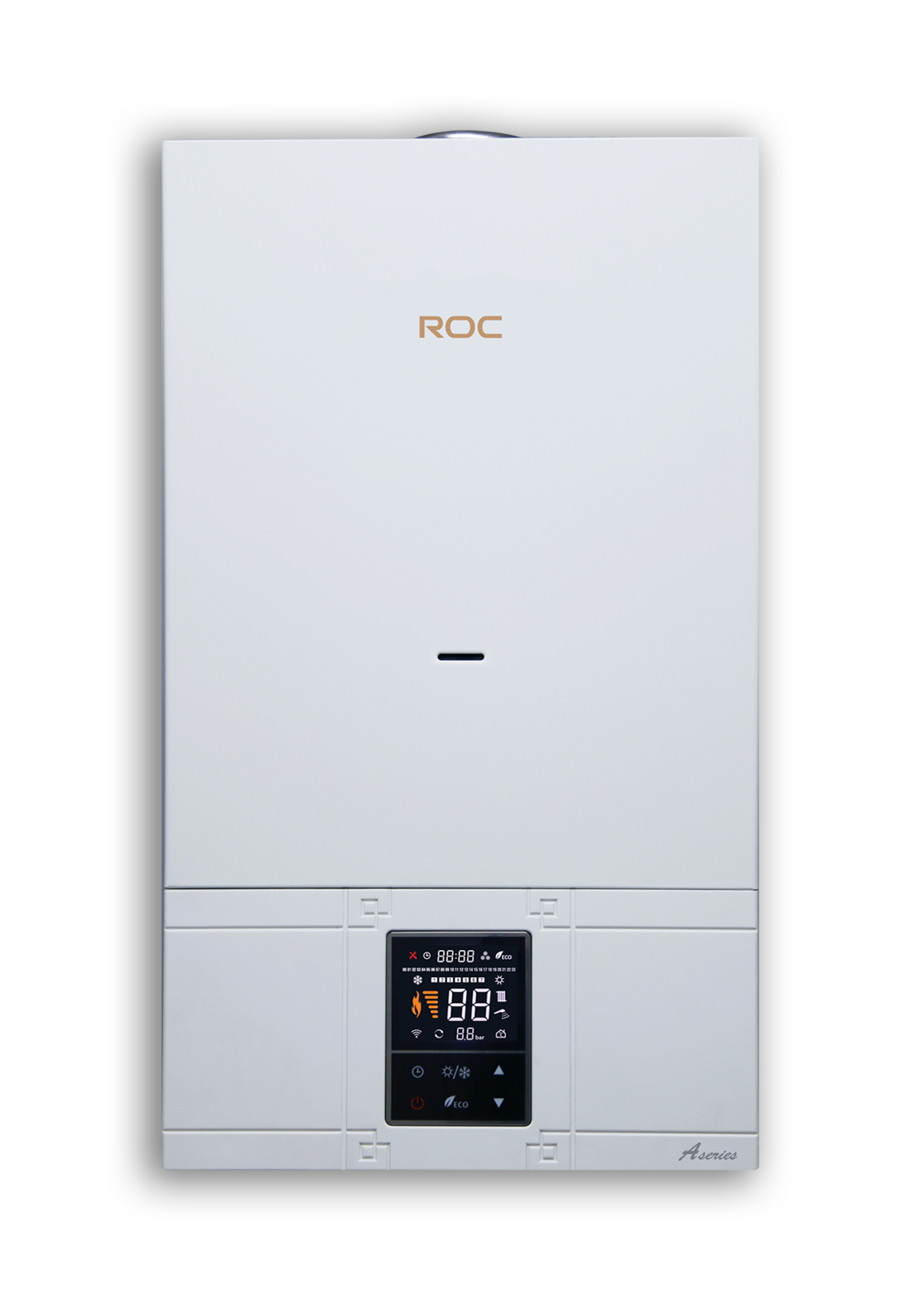

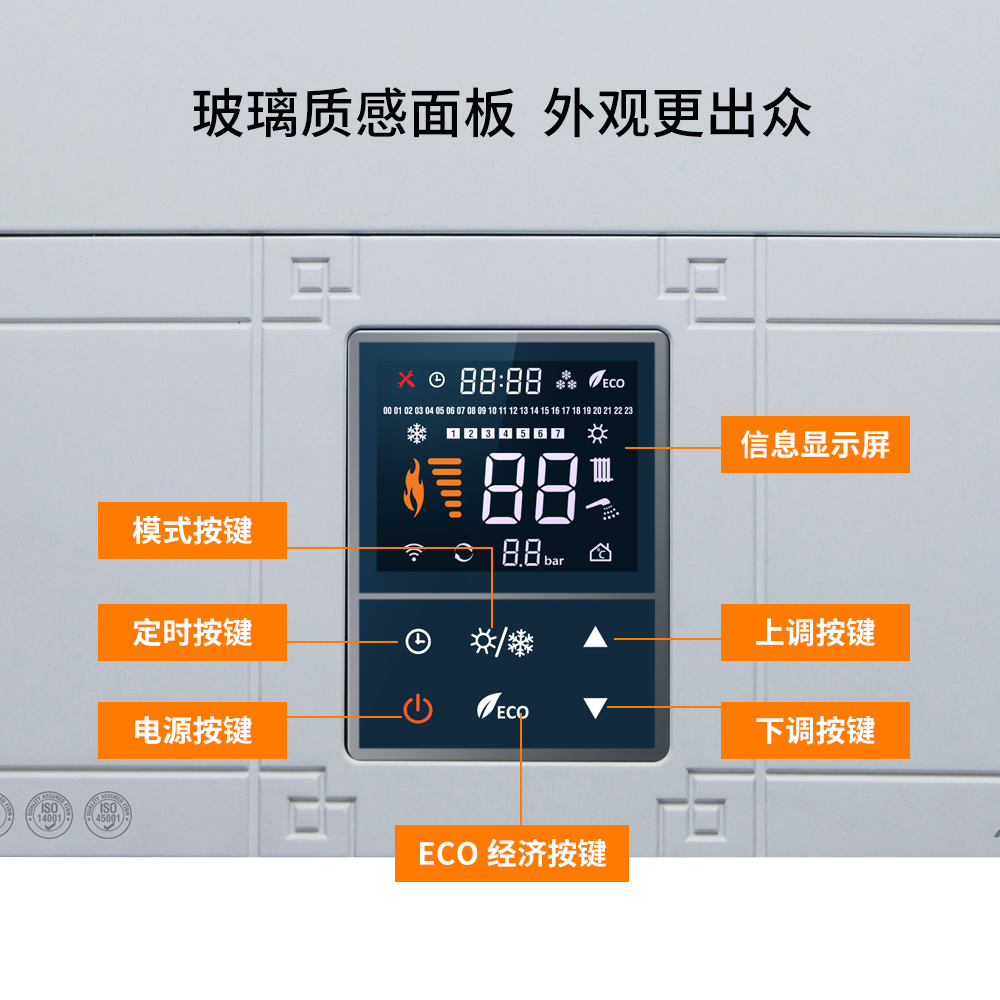

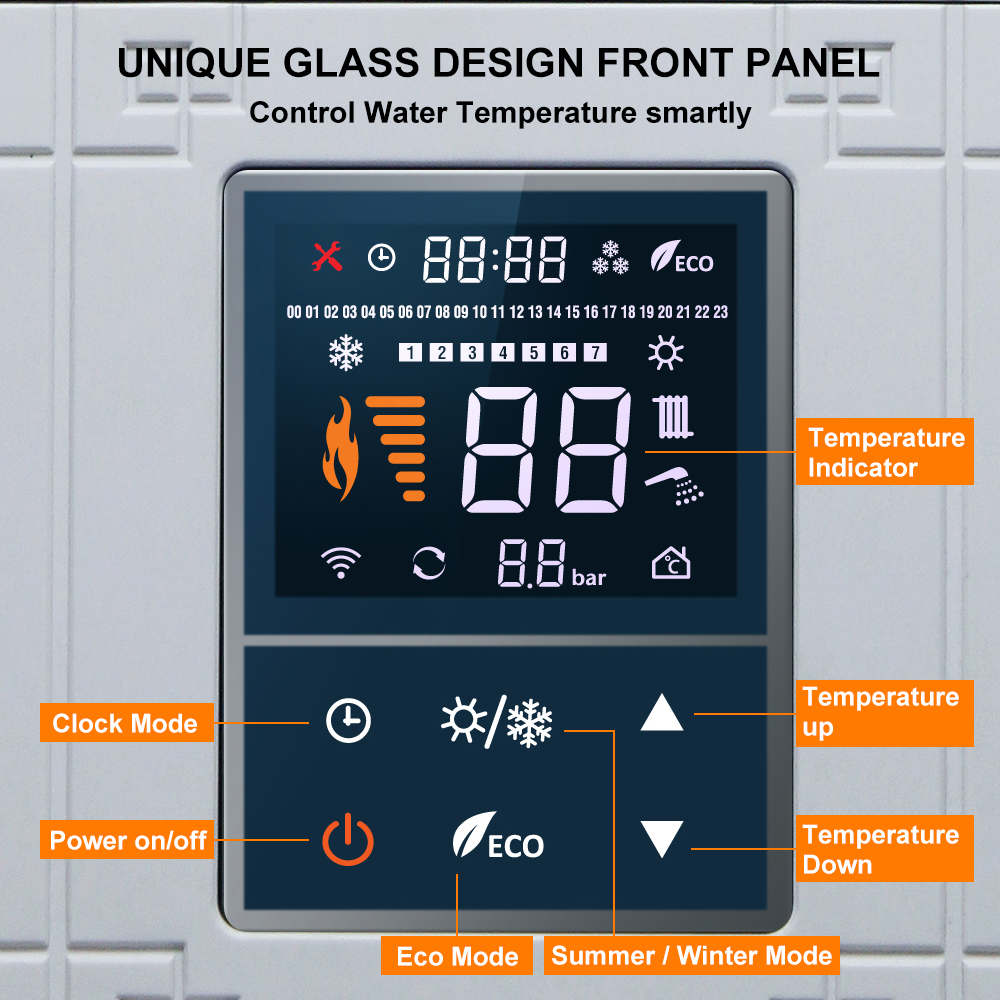

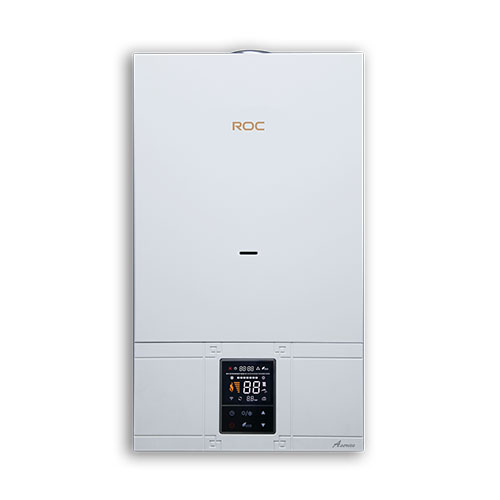

A 系列燃气壁挂炉以高效技术为核心，打造实用可靠的家庭热水与采暖解决方案。产品配备触控屏操作、ECO 节能模式及 Wi-Fi 远程控制，在便捷操作与节能表现之间实现良好平衡。通过 ISO 认证，品质更有保障，为家庭提供安心、稳定的采暖与热水体验。
产品特点：
| Unit | L1PB20-A6 | L1PB26-A6 | L1PB32-A6 | L1PB36-A6 | L1PB40-A6 | |
|---|---|---|---|---|---|---|
| Power | ||||||
| Max heating rated heat load | KW | 20 | 26.4 | 31.5 | 36 | 40 |
| Min heating rated heat load | KW | 7 | 9.2 | 11 | 12.6 | 14 |
| Max heating rated heat output | KW | 18 | 23.6 | 28 | 32 | 35.6 |
| Min heating rated heat output | KW | 6 | 7.6 | 9.2 | 10.6 | 11.6 |
| Domestic hot water rated heat load | KW | 20 | 26.4 | 31.5 | 36 | 40 |
| Efficiency | ||||||
| Energy efficiency rate | Class 2 | Class 2 | Class 2 | Class 2 | Class 2 | |
| Technical data | ||||||
| Gas consumption of heating capacity (NG) | m3/h | 2.12 | 2.79 | 3.33 | 3.81 | 4.23 |
| Anti-freeze system start temperature | °C | 5 | 5 | 5 | 5 | 5 |
| Min hot water output capacity | kg/min | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max water pressure of heating system | MPa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Water pressure of domestic hot water | MPa | 0.02~0.8 | 0.02~0.8 | 0.02~0.8 | 0.02~0.8 | 0.02~0.8 |
| Expansion tank capacity | L | 6 | 6 | 8 | 8 | 8 |
| Preset pressure of expansion tank | MPa | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Rated gas pressure (NG) | kPa | 2 | 2 | 2 | 2 | 2 |
| Gas pressure range (NG) | kPa | 1.5~3.0 | 1.5~3.0 | 1.5~3.0 | 1.5~3.0 | 1.5~3.0 |
| Performance | ||||||
| Heating temperature setting range | °C | 30~80 | 30~80 | 30~80 | 30~80 | 30~80 |
| Domestic hot water temperature setting range | °C | 30~60 | 30~60 | 30~60 | 30~60 | 30~60 |
| Hot water production capacity (△t=25K) | kg/min | 10.2 | 13.4 | 16 | 18.3 | 20.4 |
| Hot water production capacity (△t=30K) | kg/min | 8.3 | 10.8 | 13.3 | 14.8 | 16.7 |
| Circuit part | ||||||
| Rated power capacity | W | 80/100 | 100/120 | 110/130 | 130/150 | 130/150 |
| Electrical power supply voltage | – | 220V~50Hz | 220V~50Hz | 220V~50Hz | 220V~50Hz | 220V~50Hz |
| Electrical shock protection type | – | Class I | Class I | Class I | Class I | Class I |
| Degree Of Protection Against Humidity | – | IPX4D | IPX4D | IPX4D | IPX4D | IPX4D |

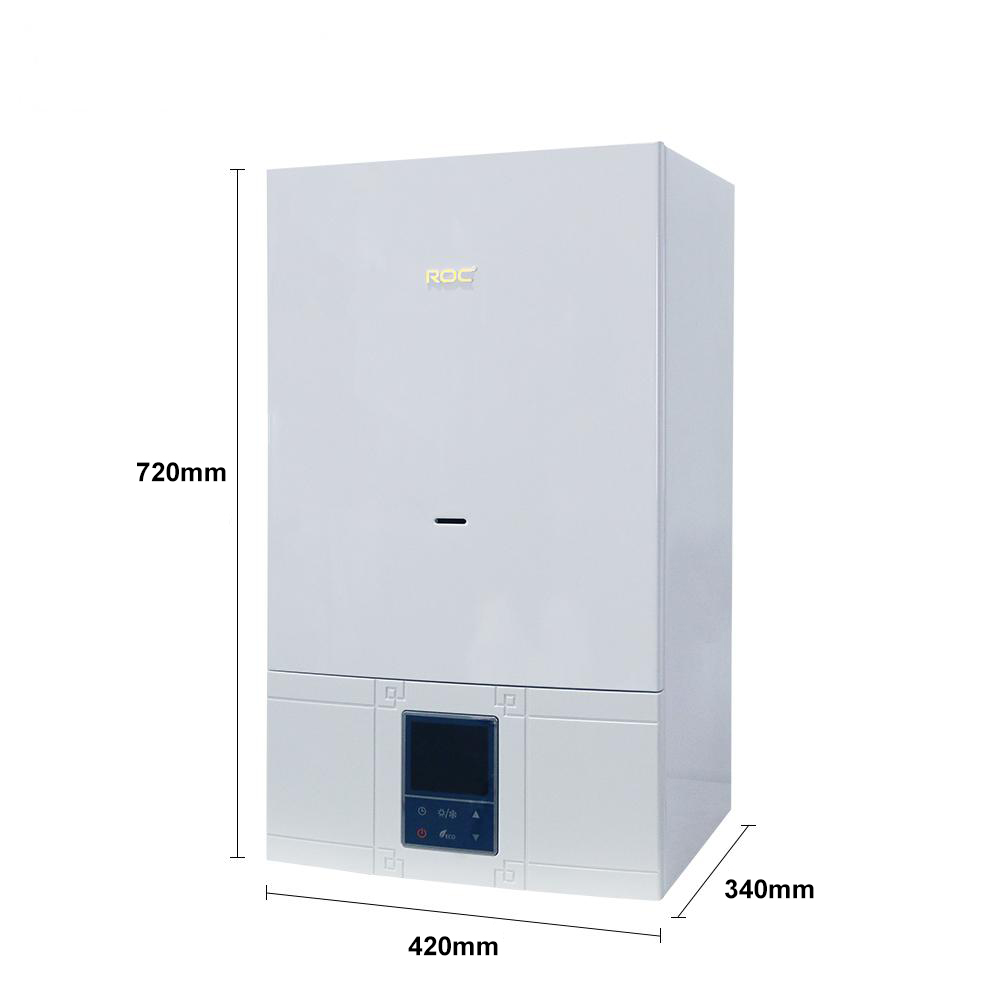

| External dimensions | mm | (L)420X(W)320X(H)720 | (L)420X(W)320X(H)720 | (L)420X(W)340X(H)720 | (L)420X(W)340X(H)720 | (L)420X(W)340X(H)720 |
Note: All above specification is for reference only, apply base on product itself.
| 支持外观、颜色、面板、Logo 等多项个性化定制
最小起订量：整柜起订 交付周期：90 天内完成 提供 OEM / ODM 服务，包装方式可根据客户需求灵活调整 |
 |
